Dynamic simulation

From a snapshot to the process story.

Steady-state simulation describes an operating point. Dynamic simulation follows how the circuit responds as conditions change.

A static flowsheet — one operating condition
Actual DPSIM demonstration · video from the launch page. Press play to watch.

A photograph and a film

The same circuit. A different question.

A static case helps review balances and duties. A dynamic case adds disturbances, storage, operating rules and time.

Steady state

Inspect one defined condition.

Actual Static Module · close-up of the demonstration circuit
Actual Static Module · close-up of the demonstration circuit
  • Mass and water balance
  • Equipment and operating assumptions
  • Comparison of steady operating cases

Dynamic simulation

Watch the response unfold.

Dynamic startup example
Actual DPSIM demonstration · video from the launch page. Press play to watch.
  • Feed variability and process disturbances
  • Start-up, shutdown and operating logic
  • Recorded production and inventory response

DPSIM framework

Define the logic. Review the response.

Developer prepares the model and scripts. Execution produces the recording that Player opens.

DPSIM Developer
Developer Script Manager for defining study-specific simulation logic
Developer · flexible simulation logic
→Execution
Recording
DPSIM Player
Player · a recorded state with graph and timeline
Player · recorded trends with timeline

Flexible study logic

Shape the simulation around your study.

Define operating logic, process variations and plant-specific behaviour to represent what matters in each study. Adapt the simulation to the questions you need to answer.

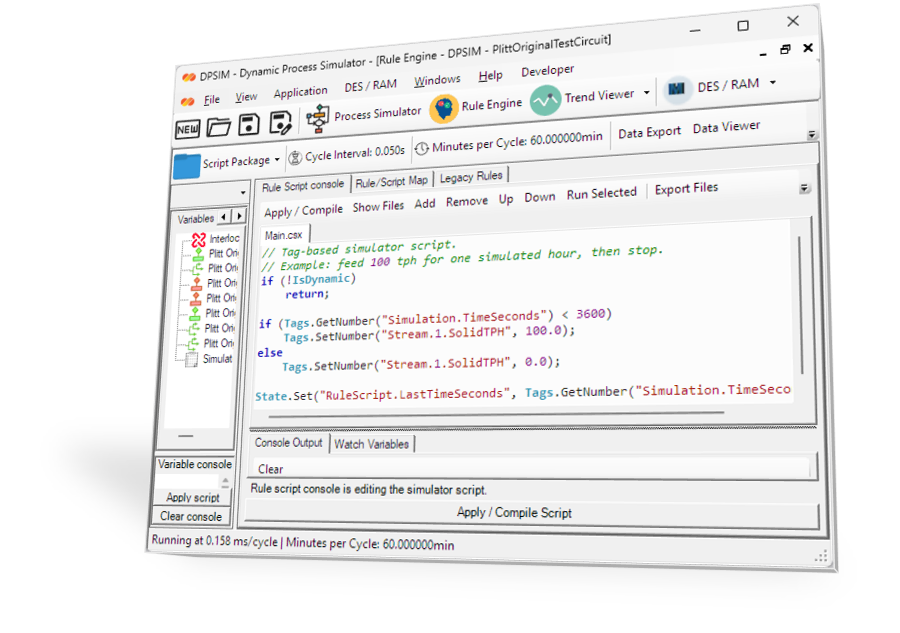

Developer Script Manager for defining study-specific simulation logic
Developer · flexible simulation logic

Engineering with DPSIM

Which process response do you need to understand?

Discuss a dynamic simulation or reliability study with EPM.

Discuss your study
